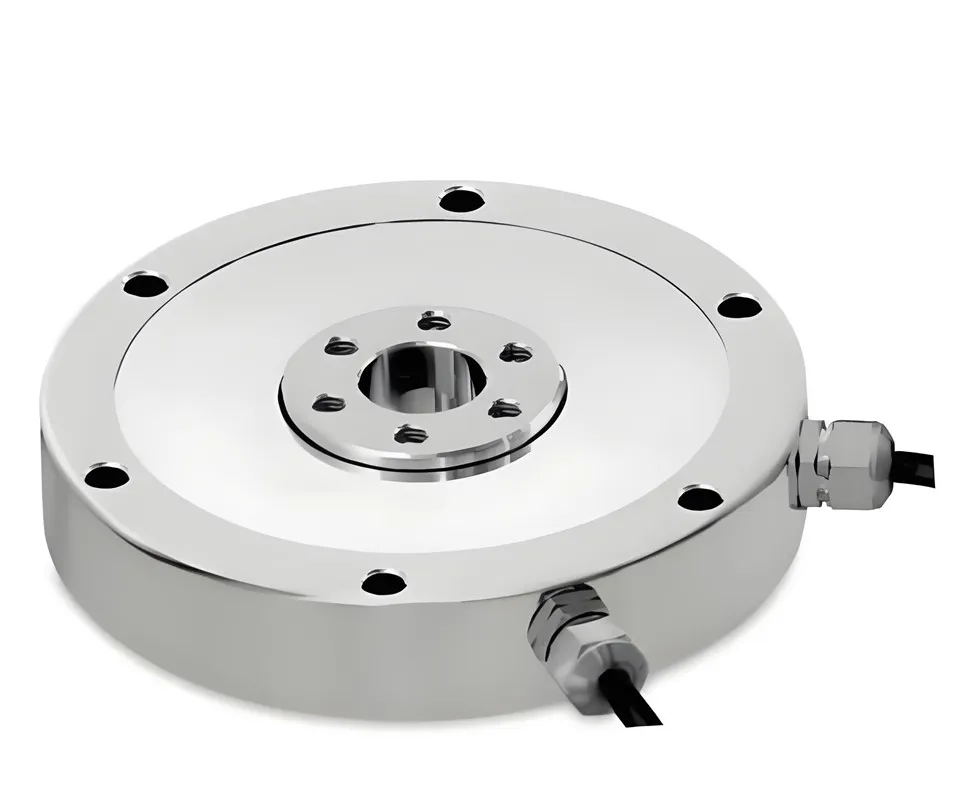

Robot Joint Module Sensor

① Nano-level Scribing of High-Resolution Grating/Magnetic Scale Disks
Utilizing laser direct writing or electron beam lithography (EBL) technology to process precision gratings or magnetic scales on glass, stainless steel, or ceramic substrates. The pitch accuracy is ±0.05μm, and the scribing edge roughness Ra ≤ 0.02μm, achieving a single-turn resolution of up to 26 bits (0.01 arc-second level).

② Integrated Processing of Miniature Strain Bridges and Elastomers
Manufacturing miniature strain beams, Wheatstone bridge patterns, and stress concentration structures on high-strength alloy steels (e.g., 17-4PH) or aluminum alloys via micro-EDM or laser cutting. Strain sensitivity coefficient ≥ 2.0, non-linearity ≤ 0.05% FS.

③ Precision Multipole Magnetization and Positioning Structure Processing
Precision multipole (32-256 poles) magnetization of rare-earth permanent magnet rings with pole angle error ≤ 0.1°, and processing of matching precision positioning shoulders and installation datums to ensure magnetic encoder signal sinusoidality ≥ 99.5%.

① Precision Forming of Multi-layer Shielding Housings and Filtering Structures
Precision machining of sensor housings using aluminum alloy or stainless steel, with inner-layer copper or nickel plating to achieve electromagnetic shielding (shielding effectiveness ≥ 60dB @ 1GHz), integrating filter capacitor mounting cavities and signal line feedthrough filter structures.

② High-Precision Bearing Installation and Air Gap Control Structures
Precision machining of encoder bearing seats to ensure bearing installation hole roundness ≤ 0.002mm and coaxiality with the code disc/magnetic ring installation datum ≤ Φ0.005mm, achieving minimal runout and optimal air gap control under dynamic measurement.

③ Optimized Processing of Thermal Conductivity and Isolation Structures
Machining thermal conductivity paths and thermal isolation slots inside the sensor, using materials with low thermal expansion coefficients (e.g., Invar alloy) to process key dimensional datums, controlling the thermal drift coefficient within ≤ ±10ppm/℃.

① Integrated Realization of IP67/IP69K Protection Structures
Utilizing laser welding or ultrasonic welding processes for housing sealing, precision machining of O-ring grooves, potting holes, and breather valve interfaces to achieve full hermetic protection, resistant to high-pressure washing and underwater operation.

② Reinforcement of Anti-vibration and Anti-shock Mechanical Structures
Designing and precision machining reinforcement ribs for key parts such as internal PCB mounts and connector locking mechanisms, optimizing structures via Finite Element Analysis (FEA) to meet 20Grms random vibration and 100g mechanical shock requirements.

③ Anti-corrosion and Special Media Compatibility Treatment
Providing various surface treatment solutions such as hard anodizing of housings, electroless nickel plating, and Parylene coating to ensure long-term stable operation in corrosive environments (e.g., cutting fluids, sea mist).

① High-Precision Dynamic Calibration System
Equipped with laser interferometers, high-precision torque calibrators, and temperature-controlled turntables to calibrate parameters such as accuracy, linearity, repeatability, and hysteresis for each sensor across the full temperature range (-40℃ to +125℃), generating a unique calibration certificate.

② Integration of Online Fault Diagnosis and Health Monitoring Interfaces
Processing reserved Built-In Test (BIT) circuit interfaces and installation positions for temperature/vibration monitoring sensors, providing a hardware foundation for predictive maintenance.

③ Digital Twin and Data Traceability
Establishing a digital file for each sensor component, including material batches, processing parameters, and test data, supporting full-lifecycle performance traceability and quality control.
